Cable Comprehensive Tester
-
[Applications]
It is used for performance testing and fault troubleshooting of cables, wire harnesses, rack backplanes and cable networks in equipment.
[Product Features]
1.Adopts high-speed, high-voltage, high-insulation military-grade switches as test channels. With superior inherent insulation performance, it satisfies the requirements of high-voltage testing in harsh environments.
2.Compatible with the testing of cables for different equipment by replacing dedicated adapters.
3.Excellent environmental adaptability, supporting all-weather operation for all military services and arms.
4.The test system features outstanding expandability to meet users’ testing demands for a larger number of test points.
5.High localization rate, sufficient spare parts and modular design ensure convenient maintenance.
Cable Comprehensive Tester

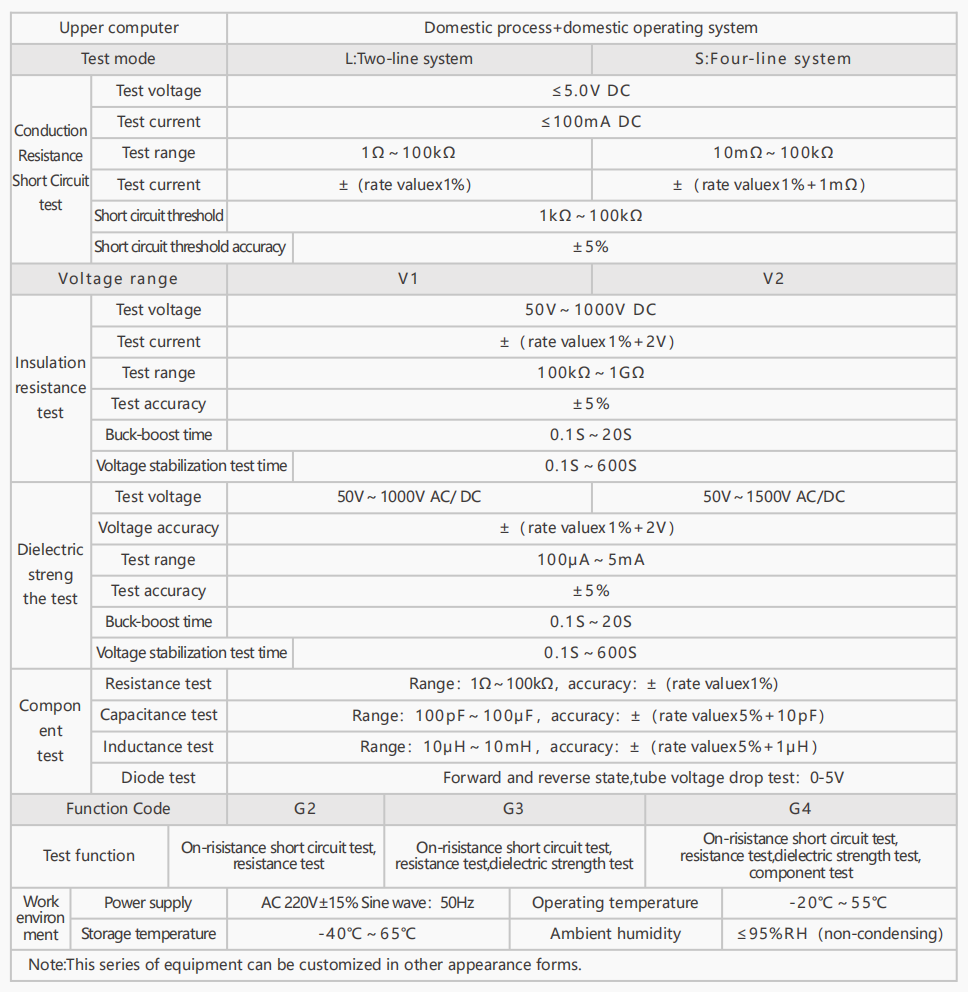

Cable Test System–Parameters
Cable Test System–Parameters
Cable Test System–Parameters
Cable Test System–Parameters
Cable Test System–Parameters
Adaptive Cable Test System
- 设备配置
- 设备功能
- 技术参数
Device configuration
| Hardware | Legend upper computer | Rugged tablet | |||
| Tester section | Tester Mainframe | ||||
| Adapt part | Adapt the patch cable | Adapter | |||
| Single point test line | Calibration module | Verification and calibration cable | |||
| Enclosure | Power supply cable | Ground wire | Outer packing box | ||
| Software | User test software | ||||
| Information | Documentation(operation and maintenance instruction certificate,product configuration list,software installation CD,etc) | ||||
Equipment selection
| Model | Y | P | L | 64 | V1 | G2 | J |
| Type | Full name of company | Upper computer | Test mode | Device points,stepping | Voltage range | Function Code | Level |
| Meaning | Shaanxi Yonghui Measurement and Control Technology Co.,Ltd | P:Rugged Table | L：Two-Line system | Two-line：64～512point 64 point stepping | V1:low voltage | G2:2 functions | |
| B :Rugged Netbook | G3:3 functions | Equipment level | |||||
| S：Four-Line system | Four-line：32～256point 32 point stepping | V2:Medium voltage | |||||
| J:Rugged computer | G4:4 functions |
